Purpose-built hardware architectures designed to support intense duty-cycles for last-mile delivery vans, corporate fleet car parks, logistics trucks, and destination retail assets.

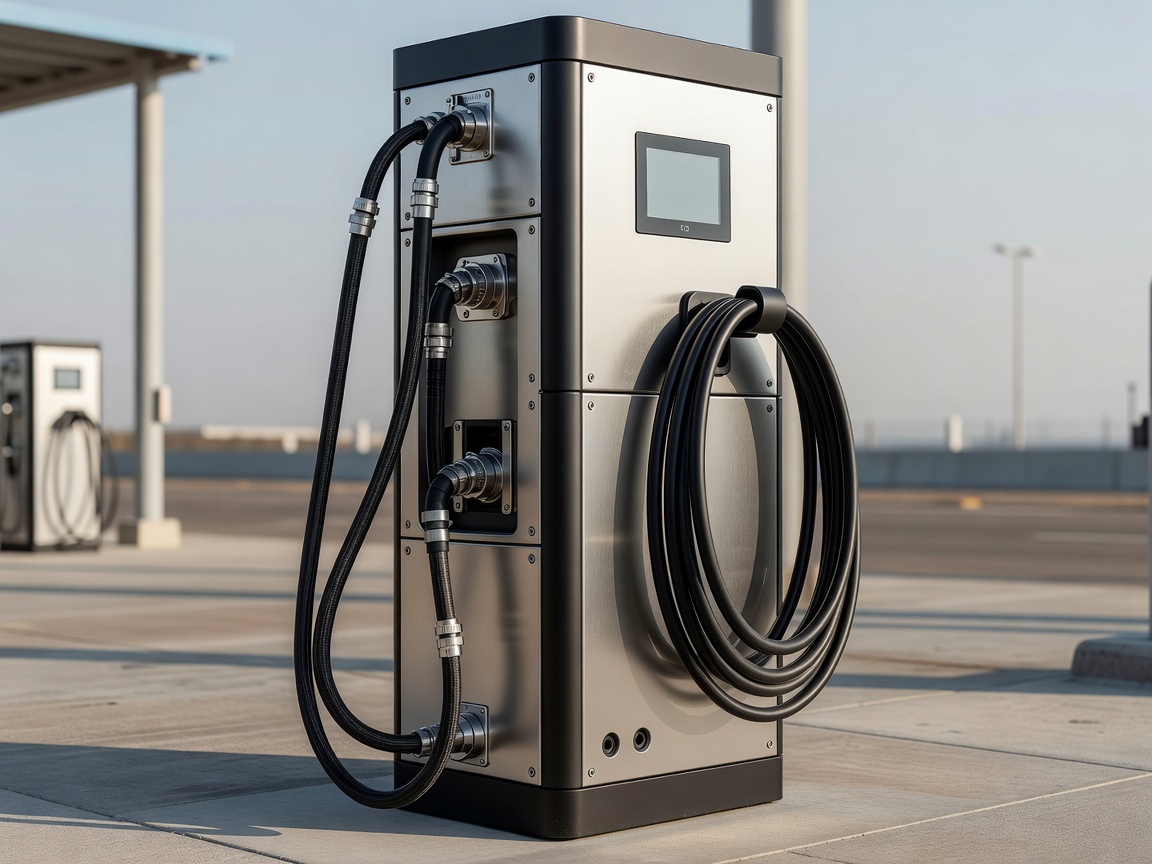

DC High Power
Dual liquid-cooled dispensers delivering up to 500A continuous charging. Designed for highway service stations and continuous 24/7 delivery hub turnaround.
Depot Fleet
Optimized footprint for commercial yard installation. Features autonomous sequential power routing across overnight shifts to fully charge multiple vehicles sequentially.

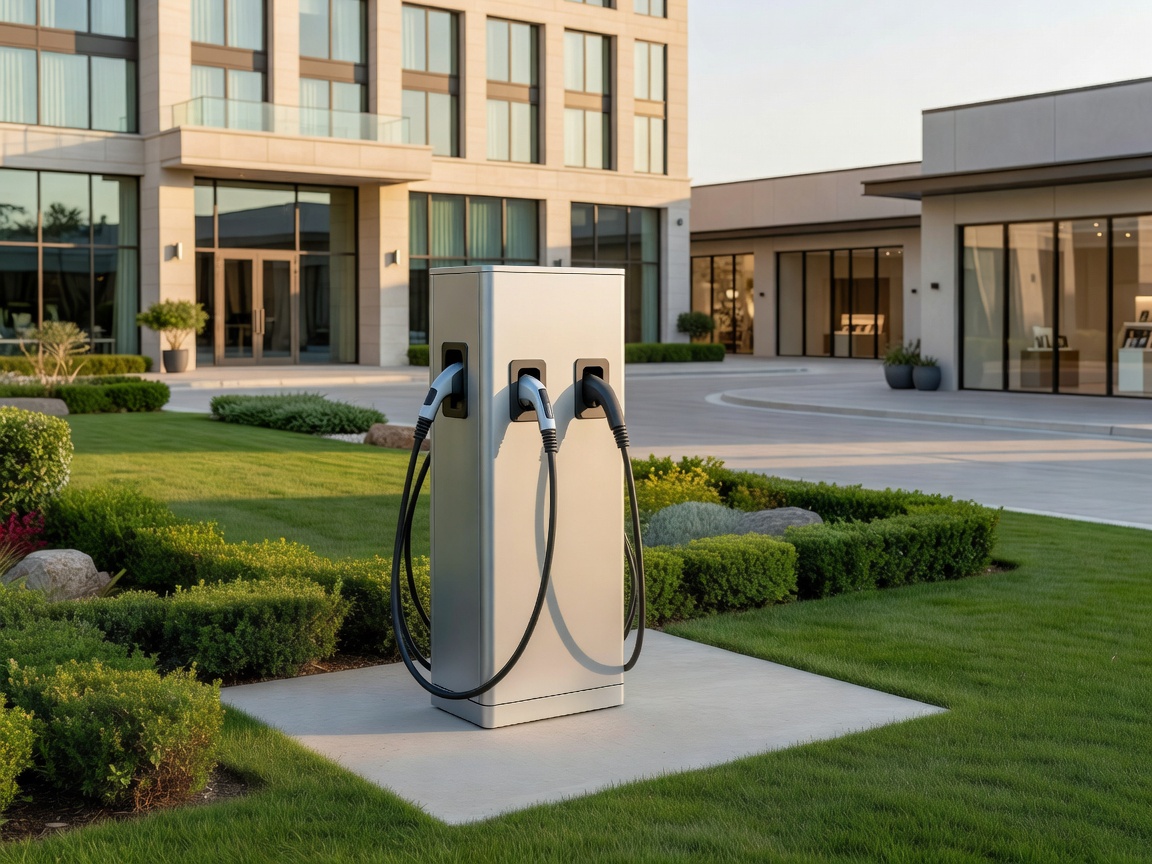

Destination
Heavy-gauge brushed stainless steel dual-socket charging post designed for commercial workplaces, retail centers, municipal parking decks, and hotels.
Engineered specifically to survive extreme ambient climates (-30°C to +55°C) with active thermal dissipation and galvanic isolation.
| Technical Parameter | Titan 400 DC | DepotCore 120 | CityPylon Dual 22 |
|---|---|---|---|
| Peak Power Rating | 400 kW Dynamic Shared | 120 kW Split/Sequential | 2x 22 kW (44 kW total) |
| Supported Connectors | 2x CCS Combo 2 (HPC Liquid) | 2x CCS2 + 1x CHAdeMO opt. | 2x Type-2 Sockets with Shutter |
| Efficiency Factor | > 96.5% at nominal load | > 95.8% at nominal load | > 99.2% AC direct pass |
| Cloud Protocol | OCPP 1.6-J & OCPP 2.0.1 Ready | OCPP 1.6-J & OCPP 2.0.1 Ready | OCPP 1.6-J & OCPP 2.0.1 |
| Payment Compliance | Integrated EMV Contactless Terminal | RFID, App & OCPI Roaming | RFID & App QR Ad-hoc POS |
| AFIR Compliance | 100% Certified with Direct Display | 100% Certified | 100% Certified |
Our logistics specialists will simulate your entire route topography, shift turnaround schedules, and grid interconnection options.
